Eigen::BiCGSTAB< MatrixType_, Preconditioner_ > Class Template Reference
Sparse linear algebra » Reference » IterativeLinearSolvers module

Detailed Description

template<typename MatrixType_, typename Preconditioner_>
class Eigen::BiCGSTAB< MatrixType_, Preconditioner_ >

A bi conjugate gradient stabilized solver for sparse square problems.

This class allows to solve for A.x = b sparse linear problems using a bi conjugate gradient stabilized algorithm. The vectors x and b can be either dense or sparse.

Template Parameters
MatrixType_the type of the sparse matrix A, can be a dense or a sparse matrix.
Preconditioner_the type of the preconditioner. Default is DiagonalPreconditioner

This class follows the sparse solver concept .

The maximal number of iterations and tolerance value can be controlled via the setMaxIterations() and setTolerance() methods. The defaults are the size of the problem for the maximal number of iterations and NumTraits<Scalar>::epsilon() for the tolerance.

The tolerance corresponds to the relative residual error: |Ax-b|/|b|

Performance: when using sparse matrices, best performance is achied for a row-major sparse matrix format. Moreover, in this case multi-threading can be exploited if the user code is compiled with OpenMP enabled. See Eigen and multi-threading for details.

This class can be used as the direct solver classes. Here is a typical usage example:

int n = 10000;
VectorXd x(n), b(n);
SparseMatrix<double> A(n, n);
/* ... fill A and b ... */
BiCGSTAB<SparseMatrix<double> > solver;
solver.compute(A);
x = solver.solve(b);
std::cout << "#iterations: " << solver.iterations() << std::endl;
std::cout << "estimated error: " << solver.error() << std::endl;
/* ... update b ... */
x = solver.solve(b); // solve again
Eigen::BiCGSTAB
A bi conjugate gradient stabilized solver for sparse square problems.
Definition BiCGSTAB.h:153
Eigen::IterativeSolverBase::error
RealScalar error() const
Definition IterativeSolverBase.h:270
Eigen::IterativeSolverBase::compute
Derived & compute(const EigenBase< MatrixDerived > &A)
Definition IterativeSolverBase.h:210
Eigen::IterativeSolverBase::iterations
Index iterations() const
Definition IterativeSolverBase.h:262
Eigen::Matrix
The matrix class, also used for vectors and row-vectors.
Definition Matrix.h:186
Eigen::SparseMatrix
A versatible sparse matrix representation.
Definition SparseUtil.h:47
Eigen::SparseSolverBase::solve
const Solve< Derived, Rhs > solve(const MatrixBase< Rhs > &b) const
Definition SparseSolverBase.h:84

By default the iterations start with x=0 as an initial guess of the solution. One can control the start using the solveWithGuess() method.

BiCGSTAB can also be used in a matrix-free context, see the following example .

See also
class SimplicialCholesky, DiagonalPreconditioner, IdentityPreconditioner

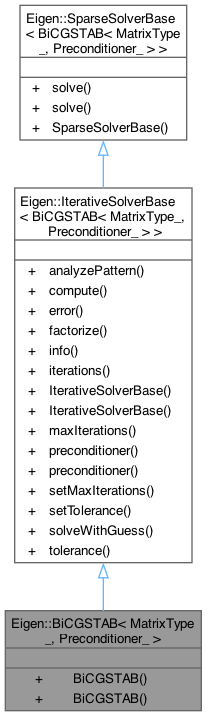

+ Inheritance diagram for Eigen::BiCGSTAB< MatrixType_, Preconditioner_ >:

Public Member Functions

 BiCGSTAB ()

template<typename MatrixDerived >
 BiCGSTAB (const EigenBase< MatrixDerived > &A)

- Public Member Functions inherited from Eigen::IterativeSolverBase< BiCGSTAB< MatrixType_, Preconditioner_ > >
BiCGSTAB< MatrixType_, Preconditioner_ > & analyzePattern (const EigenBase< MatrixDerived > &A)

BiCGSTAB< MatrixType_, Preconditioner_ > & compute (const EigenBase< MatrixDerived > &A)

RealScalar error () const

BiCGSTAB< MatrixType_, Preconditioner_ > & factorize (const EigenBase< MatrixDerived > &A)

ComputationInfo info () const

Index iterations () const

 IterativeSolverBase ()

 IterativeSolverBase (const EigenBase< MatrixDerived > &A)

Index maxIterations () const

Preconditioner & preconditioner ()

const Preconditioner & preconditioner () const

BiCGSTAB< MatrixType_, Preconditioner_ > & setMaxIterations (Index maxIters)

BiCGSTAB< MatrixType_, Preconditioner_ > & setTolerance (const RealScalar &tolerance)

const SolveWithGuess< BiCGSTAB< MatrixType_, Preconditioner_ >, Rhs, Guess > solveWithGuess (const MatrixBase< Rhs > &b, const Guess &x0) const

RealScalar tolerance () const

- Public Member Functions inherited from Eigen::SparseSolverBase< BiCGSTAB< MatrixType_, Preconditioner_ > >
const Solve< BiCGSTAB< MatrixType_, Preconditioner_ >, Rhs > solve (const MatrixBase< Rhs > &b) const

const Solve< BiCGSTAB< MatrixType_, Preconditioner_ >, Rhs > solve (const SparseMatrixBase< Rhs > &b) const

 SparseSolverBase ()


Constructor & Destructor Documentation

◆ BiCGSTAB() [1/2]

template<typename MatrixType_ , typename Preconditioner_ >
Eigen::BiCGSTAB< MatrixType_, Preconditioner_ >::BiCGSTAB ( )
inline

Default constructor.

◆ BiCGSTAB() [2/2]

template<typename MatrixType_ , typename Preconditioner_ >
template<typename MatrixDerived >
Eigen::BiCGSTAB< MatrixType_, Preconditioner_ >::BiCGSTAB ( const EigenBase< MatrixDerived > & A)
inlineexplicit

Initialize the solver with matrix A for further Ax=b solving.

This constructor is a shortcut for the default constructor followed by a call to compute().

Warning
this class stores a reference to the matrix A as well as some precomputed values that depend on it. Therefore, if A is changed this class becomes invalid. Call compute() to update it with the new matrix A, or modify a copy of A.
