Detailed Description

template<typename Scalar_, int Flags_ = 0, typename StorageIndex_ = int>
class Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >

A versatible sparse matrix representation.

This class implements a more versatile variants of the common compressed row/column storage format. Each colmun's (resp. row) non zeros are stored as a pair of value with associated row (resp. colmiun) index. All the non zeros are stored in a single large buffer. Unlike the compressed format, there might be extra space in between the nonzeros of two successive colmuns (resp. rows) such that insertion of new non-zero can be done with limited memory reallocation and copies.

A call to the function makeCompressed() turns the matrix into the standard compressed format compatible with many library.

More details on this storage sceheme are given in the manual pages.

Template Parameters

Scalar_	the scalar type, i.e. the type of the coefficients
Options_	Union of bit flags controlling the storage scheme. Currently the only possibility is ColMajor or RowMajor. The default is 0 which means column-major.
StorageIndex_	the type of the indices. It has to be a signed type (e.g., short, int, std::ptrdiff_t). Default is `int`.

Warning: In Eigen 3.2, the undocumented type SparseMatrix::Index was improperly defined as the storage index type (e.g., int), whereas it is now (starting from Eigen 3.3) deprecated and always defined as Eigen::Index. Codes making use of SparseMatrix::Index, might thus likely have to be changed to use SparseMatrix::StorageIndex instead.

This class can be extended with the help of the plugin mechanism described on the page Extending MatrixBase (and other classes) by defining the preprocessor symbol EIGEN_SPARSEMATRIX_PLUGIN.

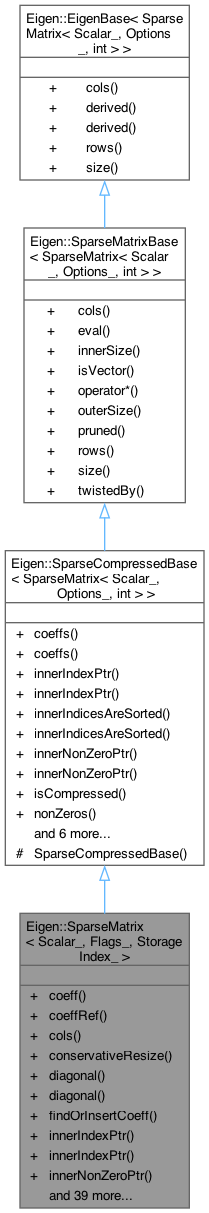

Inheritance diagram for Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >:

Public Member Functions
Scalar	coeff (Index row, Index col) const

Scalar &	coeffRef (Index row, Index col)

Index	cols () const

void	conservativeResize (Index rows, Index cols)

DiagonalReturnType	diagonal ()

const ConstDiagonalReturnType	diagonal () const

Scalar &	findOrInsertCoeff (Index row, Index col, bool *inserted)

StorageIndex *	innerIndexPtr ()

const StorageIndex *	innerIndexPtr () const

StorageIndex *	innerNonZeroPtr ()

const StorageIndex *	innerNonZeroPtr () const

Index	innerSize () const

Scalar &	insert (Index row, Index col)

template<typename InputIterators >
void	insertFromSortedTriplets (const InputIterators &begin, const InputIterators &end)

template<typename InputIterators , typename DupFunctor >
void	insertFromSortedTriplets (const InputIterators &begin, const InputIterators &end, DupFunctor dup_func)

template<typename InputIterators >
void	insertFromTriplets (const InputIterators &begin, const InputIterators &end)

template<typename InputIterators , typename DupFunctor >
void	insertFromTriplets (const InputIterators &begin, const InputIterators &end, DupFunctor dup_func)

bool	isCompressed () const

void	makeCompressed ()

Index	nonZeros () const

StorageIndex *	outerIndexPtr ()

const StorageIndex *	outerIndexPtr () const

Index	outerSize () const

template<typename KeepFunc >
void	prune (const KeepFunc &keep=KeepFunc())

void	prune (const Scalar &reference, const RealScalar &epsilon=NumTraits< RealScalar >::dummy_precision())

template<class SizesType >
void	reserve (const SizesType &reserveSizes)

void	reserve (Index reserveSize)

void	resize (Index rows, Index cols)

Index	rows () const

template<typename InputIterators >
void	setFromSortedTriplets (const InputIterators &begin, const InputIterators &end)

template<typename InputIterators , typename DupFunctor >
void	setFromSortedTriplets (const InputIterators &begin, const InputIterators &end, DupFunctor dup_func)

template<typename InputIterators >
void	setFromTriplets (const InputIterators &begin, const InputIterators &end)

template<typename InputIterators , typename DupFunctor >
void	setFromTriplets (const InputIterators &begin, const InputIterators &end, DupFunctor dup_func)

void	setIdentity ()

void	setZero ()

	SparseMatrix ()

template<typename OtherDerived >
	SparseMatrix (const DiagonalBase< OtherDerived > &other)
	Copy constructor with in-place evaluation.

template<typename OtherDerived >
	SparseMatrix (const ReturnByValue< OtherDerived > &other)
	Copy constructor with in-place evaluation.

	SparseMatrix (const SparseMatrix &other)

template<typename OtherDerived >
	SparseMatrix (const SparseMatrixBase< OtherDerived > &other)

template<typename OtherDerived , unsigned int UpLo>
	SparseMatrix (const SparseSelfAdjointView< OtherDerived, UpLo > &other)

	SparseMatrix (Index rows, Index cols)

	SparseMatrix (SparseMatrix &&other)

Scalar	sum () const

void	swap (SparseMatrix &other)

void	uncompress ()

Scalar *	valuePtr ()

const Scalar *	valuePtr () const

	~SparseMatrix ()

Public Member Functions inherited from Eigen::SparseCompressedBase< SparseMatrix< Scalar_, Options_, int > >
Map< Array< Scalar, Dynamic, 1 > >	coeffs ()

const Map< const Array< Scalar, Dynamic, 1 > >	coeffs () const

StorageIndex *	innerIndexPtr ()

const StorageIndex *	innerIndexPtr () const

Index	innerIndicesAreSorted () const

Index	innerIndicesAreSorted (Index begin, Index end) const

StorageIndex *	innerNonZeroPtr ()

const StorageIndex *	innerNonZeroPtr () const

bool	isCompressed () const

Index	nonZeros () const

StorageIndex *	outerIndexPtr ()

const StorageIndex *	outerIndexPtr () const

void	sortInnerIndices ()

void	sortInnerIndices (Index begin, Index end)

Scalar *	valuePtr ()

const Scalar *	valuePtr () const

Public Member Functions inherited from Eigen::SparseMatrixBase< SparseMatrix< Scalar_, Options_, int > >
Index	cols () const

const internal::eval< SparseMatrix< Scalar_, Options_, int > >::type	eval () const

Index	innerSize () const

bool	isVector () const

const Product< SparseMatrix< Scalar_, Options_, int >, OtherDerived, AliasFreeProduct >	operator* (const SparseMatrixBase< OtherDerived > &other) const

Index	outerSize () const

const SparseView< SparseMatrix< Scalar_, Options_, int > >	pruned (const Scalar &reference=Scalar(0), const RealScalar &epsilon=NumTraits< Scalar >::dummy_precision()) const

Index	rows () const

Index	size () const

SparseSymmetricPermutationProduct< SparseMatrix< Scalar_, Options_, int >, Upper\|Lower >	twistedBy (const PermutationMatrix< Dynamic, Dynamic, StorageIndex > &perm) const

Public Member Functions inherited from Eigen::EigenBase< SparseMatrix< Scalar_, Options_, int > >
EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

SparseMatrix< Scalar_, Options_, int > &	derived ()

const SparseMatrix< Scalar_, Options_, int > &	derived () const

EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

Additional Inherited Members
Public Types inherited from Eigen::SparseMatrixBase< SparseMatrix< Scalar_, Options_, int > >
typedef internal::traits< SparseMatrix< Scalar_, Options_, int > >::StorageIndex	StorageIndex

typedef Scalar	value_type

Public Types inherited from Eigen::EigenBase< SparseMatrix< Scalar_, Options_, int > >
typedef Eigen::Index	Index
	The interface type of indices.

Protected Member Functions inherited from Eigen::SparseCompressedBase< SparseMatrix< Scalar_, Options_, int > >
	SparseCompressedBase ()

Constructor & Destructor Documentation

◆ SparseMatrix() [1/6]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::SparseMatrix ( )

inline

Default constructor yielding an empty 0 x 0 matrix

◆ SparseMatrix() [2/6]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::SparseMatrix	(	Index	rows,
		Index	cols )

inline

Constructs a rows x cols empty matrix

◆ SparseMatrix() [3/6]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

template<typename OtherDerived >

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::SparseMatrix ( const SparseMatrixBase< OtherDerived > & other )

inline

Constructs a sparse matrix from the sparse expression other

◆ SparseMatrix() [4/6]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

template<typename OtherDerived , unsigned int UpLo>

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::SparseMatrix ( const SparseSelfAdjointView< OtherDerived, UpLo > & other )

inline

Constructs a sparse matrix from the sparse selfadjoint view other

◆ SparseMatrix() [5/6]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::SparseMatrix ( SparseMatrix< Scalar_, Flags_, StorageIndex_ > && other )

inline

Move constructor

◆ SparseMatrix() [6/6]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::SparseMatrix ( const SparseMatrix< Scalar_, Flags_, StorageIndex_ > & other )

inline

Copy constructor (it performs a deep copy)

◆ ~SparseMatrix()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::~SparseMatrix ( )

inline

Destructor

Member Function Documentation

◆ coeff()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Scalar Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::coeff	(	Index	row,
		Index	col ) const

inline

Returns: the value of the matrix at position i, j This function returns Scalar(0) if the element is an explicit zero

◆ coeffRef()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Scalar & Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::coeffRef	(	Index	row,
		Index	col )

inline

Returns: a non-const reference to the value of the matrix at position i, j

If the element does not exist then it is inserted via the insert(Index,Index) function which itself turns the matrix into a non compressed form if that was not the case.

This is a O(log(nnz_j)) operation (binary search) plus the cost of insert(Index,Index) function if the element does not already exist.

◆ cols()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Index Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::cols ( ) const

inline

Returns: the number of columns of the matrix

◆ conservativeResize()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::conservativeResize	(	Index	rows,
		Index	cols )

inline

Resizes the matrix to a rows x cols matrix leaving old values untouched.

If the sizes of the matrix are decreased, then the matrix is turned to uncompressed-mode and the storage of the out of bounds coefficients is kept and reserved. Call makeCompressed() to pack the entries and squeeze extra memory.

See also: reserve(), setZero(), makeCompressed()

◆ diagonal() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

DiagonalReturnType Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::diagonal ( )

inline

Returns: a read-write expression of the diagonal coefficients.

Warning: If the diagonal entries are written, then all diagonal entries must already exist, otherwise an assertion will be raised.

◆ diagonal() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

const ConstDiagonalReturnType Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::diagonal ( ) const

inline

Returns: a const expression of the diagonal coefficients.

◆ findOrInsertCoeff()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Scalar & Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::findOrInsertCoeff	(	Index	row,
		Index	col,
		bool *	inserted )

inline

Returns: a non-const reference to the value of the matrix at position i, j.

If the element does not exist then it is inserted via the insert(Index,Index) function which itself turns the matrix into a non compressed form if that was not the case. The output parameter inserted is set to true.

Otherwise, if the element does exist, inserted will be set to false.

This is a O(log(nnz_j)) operation (binary search) plus the cost of insert(Index,Index) function if the element does not already exist.

◆ innerIndexPtr() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

StorageIndex * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::innerIndexPtr ( )

inline

Returns: a non-const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also: valuePtr(), outerIndexPtr()

◆ innerIndexPtr() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

const StorageIndex * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::innerIndexPtr ( ) const

inline

Returns: a const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also: valuePtr(), outerIndexPtr()

◆ innerNonZeroPtr() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

StorageIndex * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::innerNonZeroPtr ( )

inline

Returns: a non-const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning: it returns the null pointer 0 in compressed mode

◆ innerNonZeroPtr() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

const StorageIndex * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::innerNonZeroPtr ( ) const

inline

Returns: a const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning: it returns the null pointer 0 in compressed mode

◆ innerSize()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Index Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::innerSize ( ) const

inline

Returns: the number of rows (resp. columns) of the matrix if the storage order column major (resp. row major)

◆ insert()

template<typename Scalar_ , int Options_, typename StorageIndex_ >

SparseMatrix< Scalar_, Options_, StorageIndex_ >::Scalar & Eigen::SparseMatrix< Scalar_, Options_, StorageIndex_ >::insert	(	Index	row,
		Index	col )

inline

Returns: a reference to a novel non zero coefficient with coordinates row x col. The non zero coefficient must not already exist.

If the matrix *this is in compressed mode, then *this is turned into uncompressed mode while reserving room for 2 x this->innerSize() non zeros if reserve(Index) has not been called earlier. In this case, the insertion procedure is optimized for a sequential insertion mode where elements are assumed to be inserted by increasing outer-indices.

If that's not the case, then it is strongly recommended to either use a triplet-list to assemble the matrix, or to first call reserve(const SizesType &) to reserve the appropriate number of non-zero elements per inner vector.

Assuming memory has been appropriately reserved, this function performs a sorted insertion in O(1) if the elements of each inner vector are inserted in increasing inner index order, and in O(nnz_j) for a random insertion.

◆ insertFromSortedTriplets() [1/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::insertFromSortedTriplets	(	const InputIterators &	begin,
		const InputIterators &	end )

The same as insertFromTriplets but triplets are assumed to be pre-sorted. This is faster and requires less temporary storage. Two triplets a and b are appropriately ordered if:

ColMajor: ((a.col() != b.col()) ? (a.col() <

b.col()) : (a.row() < b.row()) RowMajor: ((a.row() != b.row()) ? (a.row() < b.row()) : (a.col() < b.col())

Eigen::ColMajor

@ ColMajor

Definition Constants.h:318

Eigen::RowMajor

@ RowMajor

Definition Constants.h:320

◆ insertFromSortedTriplets() [2/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators , typename DupFunctor >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::insertFromSortedTriplets	(	const InputIterators &	begin,
		const InputIterators &	end,
		DupFunctor	dup_func )

The same as insertFromSortedTriplets but when duplicates are met the functor dup_func is applied:

value = dup_func(OldValue, NewValue)

Here is a C++11 example keeping the latest entry only:

mat.insertFromSortedTriplets(triplets.begin(), triplets.end(), [] (const Scalar&,const Scalar &b) { return b; });

◆ insertFromTriplets() [1/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::insertFromTriplets	(	const InputIterators &	begin,
		const InputIterators &	end )

Insert a batch of elements into the matrix *this with the list of triplets defined in the half-open range from begin to end.

A triplet is a tuple (i,j,value) defining a non-zero element. The input list of triplets does not have to be sorted, and may contain duplicated elements. In any case, the result is a sorted and compressed sparse matrix where the duplicates have been summed up. This is a O(n) operation, with n the number of triplet elements. The initial contents of *this are preserved (except for the summation of duplicate elements). The matrix *this must be properly sized beforehand. The sizes are not extracted from the triplet list.

The InputIterators value_type must provide the following interface:

Scalar value() const; // the value
IndexType row() const;   // the row index i
IndexType col() const;   // the column index j

See for instance the Eigen::Triplet template class.

Here is a typical usage example:

SparseMatrixType m(rows,cols); // m contains nonzero entries
typedef Triplet<double> T;
std::vector<T> tripletList;
tripletList.reserve(estimation_of_entries);
for(...)
{
  // ...
  tripletList.push_back(T(i,j,v_ij));
}

m.insertFromTriplets(tripletList.begin(), tripletList.end());
// m is ready to go!

Warning: The list of triplets is read multiple times (at least twice). Therefore, it is not recommended to define an abstract iterator over a complex data-structure that would be expensive to evaluate. The triplets should rather be explicitly stored into a std::vector for instance.

◆ insertFromTriplets() [2/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators , typename DupFunctor >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::insertFromTriplets	(	const InputIterators &	begin,
		const InputIterators &	end,
		DupFunctor	dup_func )

The same as insertFromTriplets but when duplicates are met the functor dup_func is applied:

value = dup_func(OldValue, NewValue)

Here is a C++11 example keeping the latest entry only:

mat.insertFromTriplets(triplets.begin(), triplets.end(), [] (const Scalar&,const Scalar &b) { return b; });

◆ isCompressed()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

bool Eigen::SparseCompressedBase< Derived >::isCompressed ( ) const

inline

Returns: whether *this is in compressed form.

◆ makeCompressed()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::makeCompressed ( )

inline

Turns the matrix into the compressed format.

◆ nonZeros()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Index Eigen::SparseCompressedBase< Derived >::nonZeros ( ) const

inline

Returns: the number of non zero coefficients

◆ outerIndexPtr() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

StorageIndex * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::outerIndexPtr ( )

inline

Returns: a non-const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

See also: valuePtr(), innerIndexPtr()

◆ outerIndexPtr() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

const StorageIndex * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::outerIndexPtr ( ) const

inline

Returns: a const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

See also: valuePtr(), innerIndexPtr()

◆ outerSize()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Index Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::outerSize ( ) const

inline

Returns: the number of columns (resp. rows) of the matrix if the storage order column major (resp. row major)

◆ prune() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

template<typename KeepFunc >

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::prune ( const KeepFunc & keep = KeepFunc() )

inline

Turns the matrix into compressed format, and suppresses all nonzeros which do not satisfy the predicate keep. The functor type KeepFunc must implement the following function:

bool operator() (const Index& row, const Index& col, const Scalar& value) const;

Eigen::Index

EIGEN_DEFAULT_DENSE_INDEX_TYPE Index

The Index type as used for the API.

Definition Meta.h:83

See also: prune(Scalar,RealScalar)

◆ prune() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::prune	(	const Scalar &	reference,
		const RealScalar &	epsilon = NumTraits<RealScalar>::dummy_precision() )

inline

Suppresses all nonzeros which are much smaller than reference under the tolerance epsilon

◆ reserve() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

template<class SizesType >

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::reserve ( const SizesType & reserveSizes )

inline

Preallocates reserveSize[j] non zeros for each column (resp. row) j.

This function turns the matrix in non-compressed mode.

The type SizesType must expose the following interface:

typedef value_type;

const value_type& operator[](i) const;

Eigen::SparseMatrixBase< SparseMatrix< Scalar_, Options_, int > >::value_type

Scalar value_type

Definition SparseMatrixBase.h:37

for i in the [0,this->outerSize()[ range. Typical choices include std::vector<int>, Eigen::VectorXi, Eigen::VectorXi::Constant, etc.

◆ reserve() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::reserve ( Index reserveSize )

inline

Preallocates reserveSize non zeros.

Precondition: the matrix must be in compressed mode.

◆ resize()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::resize	(	Index	rows,
		Index	cols )

inline

Resizes the matrix to a rows x cols matrix and initializes it to zero.

This function does not free the currently allocated memory. To release as much as memory as possible, call

mat.data().squeeze();

after resizing it.

See also: reserve(), setZero()

◆ rows()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Index Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::rows ( ) const

inline

Returns: the number of rows of the matrix

◆ setFromSortedTriplets() [1/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::setFromSortedTriplets	(	const InputIterators &	begin,
		const InputIterators &	end )

The same as setFromTriplets but triplets are assumed to be pre-sorted. This is faster and requires less temporary storage. Two triplets a and b are appropriately ordered if:

ColMajor: ((a.col() != b.col()) ? (a.col() <

b.col()) : (a.row() < b.row()) RowMajor: ((a.row() != b.row()) ? (a.row() < b.row()) : (a.col() < b.col())

◆ setFromSortedTriplets() [2/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators , typename DupFunctor >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::setFromSortedTriplets	(	const InputIterators &	begin,
		const InputIterators &	end,
		DupFunctor	dup_func )

The same as setFromSortedTriplets but when duplicates are met the functor dup_func is applied:

value = dup_func(OldValue, NewValue)

Here is a C++11 example keeping the latest entry only:

mat.setFromSortedTriplets(triplets.begin(), triplets.end(), [] (const Scalar&,const Scalar &b) { return b; });

◆ setFromTriplets() [1/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::setFromTriplets	(	const InputIterators &	begin,
		const InputIterators &	end )

Fill the matrix *this with the list of triplets defined in the half-open range from begin to end.

A triplet is a tuple (i,j,value) defining a non-zero element. The input list of triplets does not have to be sorted, and may contain duplicated elements. In any case, the result is a sorted and compressed sparse matrix where the duplicates have been summed up. This is a O(n) operation, with n the number of triplet elements. The initial contents of *this are destroyed. The matrix *this must be properly resized beforehand using the SparseMatrix(Index,Index) constructor, or the resize(Index,Index) method. The sizes are not extracted from the triplet list.

The InputIterators value_type must provide the following interface:

Scalar value() const; // the value
IndexType row() const;   // the row index i
IndexType col() const;   // the column index j

See for instance the Eigen::Triplet template class.

Here is a typical usage example:

typedef Triplet<double> T;
std::vector<T> tripletList;
tripletList.reserve(estimation_of_entries);
for(...)
{
  // ...
  tripletList.push_back(T(i,j,v_ij));
}
SparseMatrixType m(rows,cols);
m.setFromTriplets(tripletList.begin(), tripletList.end());
// m is ready to go!

Warning: The list of triplets is read multiple times (at least twice). Therefore, it is not recommended to define an abstract iterator over a complex data-structure that would be expensive to evaluate. The triplets should rather be explicitly stored into a std::vector for instance.

◆ setFromTriplets() [2/2]

template<typename Scalar , int Options_, typename StorageIndex_ >

template<typename InputIterators , typename DupFunctor >

void Eigen::SparseMatrix< Scalar, Options_, StorageIndex_ >::setFromTriplets	(	const InputIterators &	begin,
		const InputIterators &	end,
		DupFunctor	dup_func )

The same as setFromTriplets but when duplicates are met the functor dup_func is applied:

value = dup_func(OldValue, NewValue)

Here is a C++11 example keeping the latest entry only:

mat.setFromTriplets(triplets.begin(), triplets.end(), [] (const Scalar&,const Scalar &b) { return b; });

◆ setIdentity()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::setIdentity ( )

inline

Sets *this to the identity matrix. This function also turns the matrix into compressed mode, and drop any reserved memory.

◆ setZero()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::setZero ( )

inline

Removes all non zeros but keep allocated memory

This function does not free the currently allocated memory. To release as much as memory as possible, call

mat.data().squeeze();

after resizing it.

See also: resize(Index,Index), data()

◆ sum()

template<typename Scalar_ , int Options_, typename Index_ >

internal::traits< SparseMatrix< Scalar_, Options_, Index_ > >::Scalar Eigen::SparseMatrix< Scalar_, Options_, Index_ >::sum ( ) const

Overloaded for performance

◆ swap()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::swap ( SparseMatrix< Scalar_, Flags_, StorageIndex_ > & other )

inline

Swaps the content of two sparse matrices of the same type. This is a fast operation that simply swaps the underlying pointers and parameters.

◆ uncompress()

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

void Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::uncompress ( )

inline

Turns the matrix into the uncompressed mode

◆ valuePtr() [1/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

Scalar * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::valuePtr ( )

inline

Returns: a non-const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also: innerIndexPtr(), outerIndexPtr()

◆ valuePtr() [2/2]

template<typename Scalar_ , int Flags_ = 0, typename StorageIndex_ = int>

const Scalar * Eigen::SparseMatrix< Scalar_, Flags_, StorageIndex_ >::valuePtr ( ) const

inline

Returns: a const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also: innerIndexPtr(), outerIndexPtr()

The documentation for this class was generated from the following files:

Detailed Description

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ SparseMatrix() [1/6]

◆ SparseMatrix() [2/6]

◆ SparseMatrix() [3/6]

◆ SparseMatrix() [4/6]

◆ SparseMatrix() [5/6]

◆ SparseMatrix() [6/6]

◆ ~SparseMatrix()

Member Function Documentation

◆ coeff()

◆ coeffRef()

◆ cols()

◆ conservativeResize()

◆ diagonal() [1/2]

◆ diagonal() [2/2]

◆ findOrInsertCoeff()

◆ innerIndexPtr() [1/2]

◆ innerIndexPtr() [2/2]

◆ innerNonZeroPtr() [1/2]

◆ innerNonZeroPtr() [2/2]

◆ innerSize()

◆ insert()

◆ insertFromSortedTriplets() [1/2]

◆ insertFromSortedTriplets() [2/2]

◆ insertFromTriplets() [1/2]

◆ insertFromTriplets() [2/2]

◆ isCompressed()

◆ makeCompressed()

◆ nonZeros()

◆ outerIndexPtr() [1/2]

◆ outerIndexPtr() [2/2]

◆ outerSize()

◆ prune() [1/2]

◆ prune() [2/2]

◆ reserve() [1/2]

◆ reserve() [2/2]

◆ resize()

◆ rows()

◆ setFromSortedTriplets() [1/2]

◆ setFromSortedTriplets() [2/2]

◆ setFromTriplets() [1/2]

◆ setFromTriplets() [2/2]

◆ setIdentity()

◆ setZero()

◆ sum()

◆ swap()

◆ uncompress()

◆ valuePtr() [1/2]

◆ valuePtr() [2/2]
