Eigen::EigenBase< Derived > Class Template Reference
Dense matrix and array manipulation » Reference » Core module

Detailed Description

template<typename Derived>
class Eigen::EigenBase< Derived >

Common base class for all classes T such that MatrixBase has an operator=(T) and a constructor MatrixBase(T).

In other words, an EigenBase object is an object that can be copied into a MatrixBase.

Besides MatrixBase-derived classes, this also includes special matrix classes such as diagonal matrices, etc.

Notice that this class is trivial, it is only used to disambiguate overloaded functions.

See also
The class hierarchy

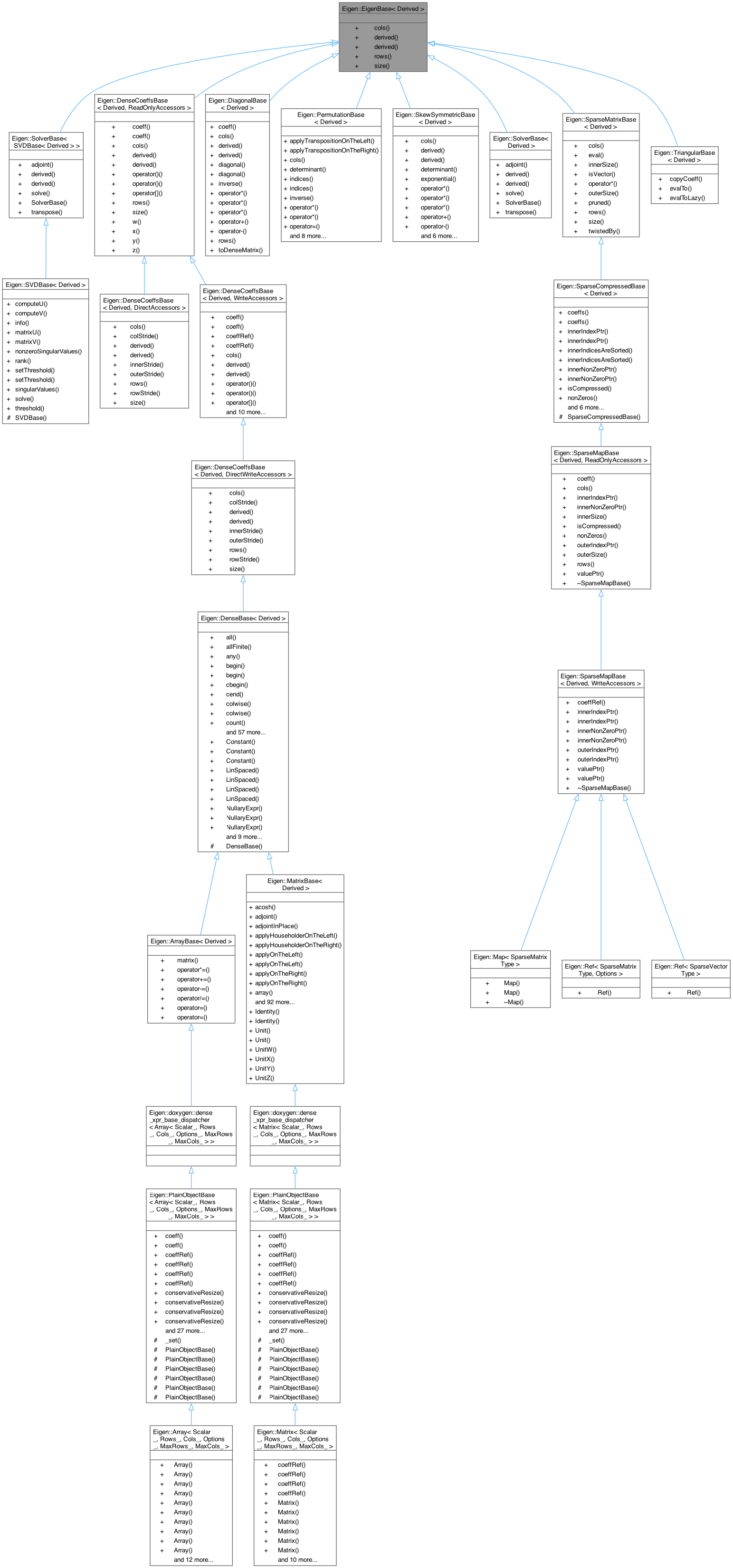

+ Inheritance diagram for Eigen::EigenBase< Derived >:

Public Types

typedef Eigen::Index Index
 The interface type of indices.


Public Member Functions

EIGEN_CONSTEXPR Index cols () const EIGEN_NOEXCEPT

Derived & derived ()

const Derived & derived () const

EIGEN_CONSTEXPR Index rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index size () const EIGEN_NOEXCEPT


Member Typedef Documentation

◆ Index

template<typename Derived >
typedef Eigen::Index Eigen::EigenBase< Derived >::Index

The interface type of indices.

To change this, #define the preprocessor symbol EIGEN_DEFAULT_DENSE_INDEX_TYPE.

See also
StorageIndex, Preprocessor directives. DEPRECATED: Since Eigen 3.3, its usage is deprecated. Use Eigen::Index instead. Deprecation is not marked with a doxygen comment because there are too many existing usages to add the deprecation attribute.

Member Function Documentation

◆ cols()

template<typename Derived >
EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::cols ( ) const
inline
Returns
the number of columns.
See also
rows(), ColsAtCompileTime

◆ derived() [1/2]

template<typename Derived >
Derived & Eigen::EigenBase< Derived >::derived ( )
inline
Returns
a reference to the derived object

◆ derived() [2/2]

template<typename Derived >
const Derived & Eigen::EigenBase< Derived >::derived ( ) const
inline
Returns
a const reference to the derived object

◆ rows()

template<typename Derived >
EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::rows ( ) const
inline
Returns
the number of rows.
See also
cols(), RowsAtCompileTime

◆ size()

template<typename Derived >
EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::size ( ) const
inline
Returns
the number of coefficients, which is rows()*cols().
See also
rows(), cols(), SizeAtCompileTime.
The documentation for this class was generated from the following files:
