Eigen::SparseCompressedBase< Derived > Class Template Reference

Detailed Description

template<typename Derived>
class Eigen::SparseCompressedBase< Derived >

Common base class for sparse [compressed]-{row|column}-storage format.

This class defines the common interface for all derived classes implementing the compressed sparse storage format, such as:

• SparseMatrix
• Ref<SparseMatrixType,Options>
• Map<SparseMatrixType>

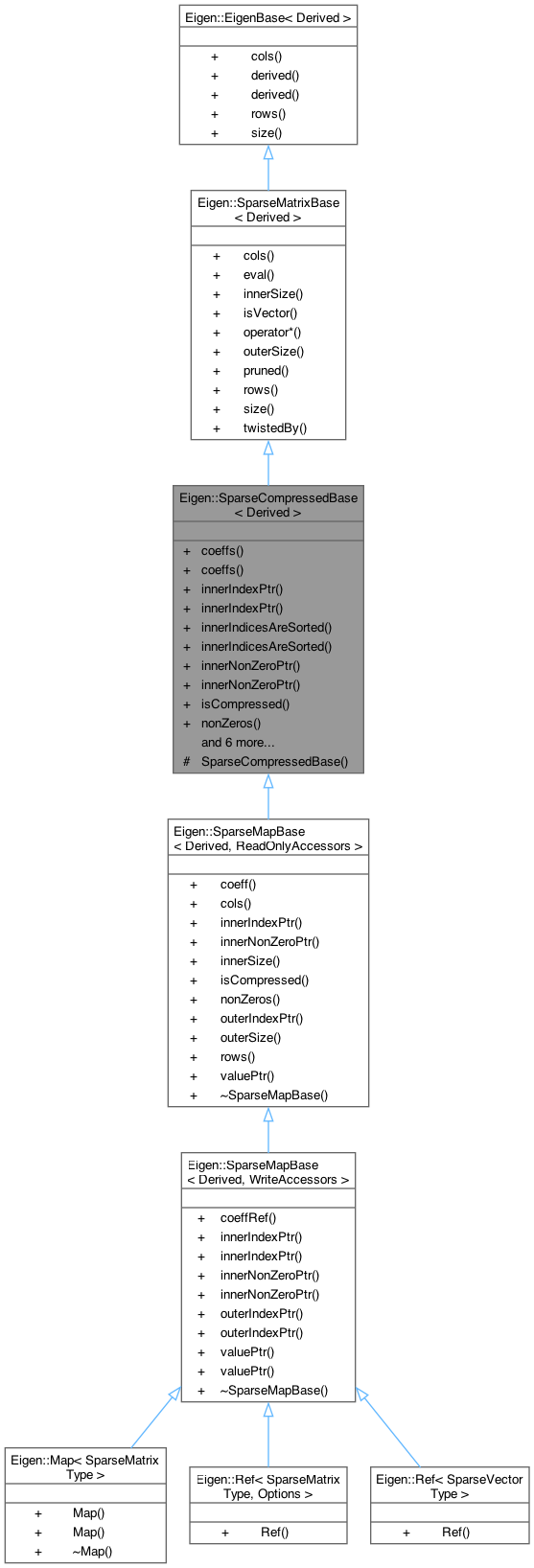

Inheritance diagram for Eigen::SparseCompressedBase< Derived >:

Public Member Functions
Map< Array< Scalar, Dynamic, 1 > >	coeffs ()
const Map< const Array< Scalar, Dynamic, 1 > >	coeffs () const
StorageIndex *	innerIndexPtr ()
const StorageIndex *	innerIndexPtr () const
template<class Comp = std::less<>>
Index	innerIndicesAreSorted () const
template<class Comp = std::less<>>
Index	innerIndicesAreSorted (Index begin, Index end) const
StorageIndex *	innerNonZeroPtr ()
const StorageIndex *	innerNonZeroPtr () const
bool	isCompressed () const
Index	nonZeros () const
StorageIndex *	outerIndexPtr ()
const StorageIndex *	outerIndexPtr () const
template<class Comp = std::less<>>
void	sortInnerIndices ()
template<class Comp = std::less<>>
void	sortInnerIndices (Index begin, Index end)
Scalar *	valuePtr ()
const Scalar *	valuePtr () const
Public Member Functions inherited from Eigen::SparseMatrixBase< Derived >
Index	cols () const
const internal::eval< Derived >::type	eval () const
Index	innerSize () const
bool	isVector () const
template<typename OtherDerived >
const Product< Derived, OtherDerived, AliasFreeProduct >	operator* (const SparseMatrixBase< OtherDerived > &other) const
Index	outerSize () const
const SparseView< Derived >	pruned (const Scalar &reference=Scalar(0), const RealScalar &epsilon=NumTraits< Scalar >::dummy_precision()) const
Index	rows () const
Index	size () const
SparseSymmetricPermutationProduct< Derived, Upper|Lower >	twistedBy (const PermutationMatrix< Dynamic, Dynamic, StorageIndex > &perm) const
Public Member Functions inherited from Eigen::EigenBase< Derived >
EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
Derived &	derived ()
const Derived &	derived () const
EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT
EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

Protected Member Functions
	SparseCompressedBase ()

Additional Inherited Members
Public Types inherited from Eigen::SparseMatrixBase< Derived >
enum	{   RowsAtCompileTime ,   ColsAtCompileTime ,   SizeAtCompileTime ,   MaxRowsAtCompileTime ,   MaxColsAtCompileTime ,   MaxSizeAtCompileTime ,   IsVectorAtCompileTime ,   NumDimensions ,   Flags ,   IsRowMajor ,   InnerSizeAtCompileTime }
typedef internal::traits< Derived >::StorageIndex	StorageIndex
typedef Scalar	value_type
Public Types inherited from Eigen::EigenBase< Derived >
typedef Eigen::Index	Index
	The interface type of indices.

Constructor & Destructor Documentation

SparseCompressedBase()

template<typename Derived >

Eigen::SparseCompressedBase< Derived >::SparseCompressedBase ( )

inlineprotected

Default constructor. Do nothing.

Member Function Documentation

coeffs() [1/2]

template<typename Derived >

Map< Array< Scalar, Dynamic, 1 > > Eigen::SparseCompressedBase< Derived >::coeffs ( )

inline

Returns

a read-write view of the stored coefficients as a 1D array expression

Warning

this method is for compressed storage only, and it will trigger an assertion otherwise.

Here is an example:

SparseMatrix<double> A(3, 3);
A.insert(1, 2) = 0;
A.insert(0, 1) = 1;
A.insert(2, 0) = 2;
A.makeCompressed();
cout << "The matrix A is:" << endl << MatrixXd(A) << endl;
cout << "it has " << A.nonZeros() << " stored non zero coefficients that are: " << A.coeffs().transpose() << endl;
A.coeffs() += 10;
cout << "After adding 10 to every stored non zero coefficient, the matrix A is:" << endl << MatrixXd(A) << endl;

and the output is:

See also

valuePtr(), isCompressed()

coeffs() [2/2]

template<typename Derived >

const Map< const Array< Scalar, Dynamic, 1 > > Eigen::SparseCompressedBase< Derived >::coeffs ( ) const

inline

Returns

a read-only view of the stored coefficients as a 1D array expression.

Warning

this method is for compressed storage only, and it will trigger an assertion otherwise.

See also

valuePtr(), isCompressed()

innerIndexPtr() [1/2]

template<typename Derived >

StorageIndex * Eigen::SparseCompressedBase< Derived >::innerIndexPtr ( )

inline

Returns

a non-const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also

valuePtr(), outerIndexPtr()

innerIndexPtr() [2/2]

template<typename Derived >

const StorageIndex * Eigen::SparseCompressedBase< Derived >::innerIndexPtr ( ) const

inline

Returns

a const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also

valuePtr(), outerIndexPtr()

innerIndicesAreSorted() [1/2]

template<typename Derived >

template<class Comp = std::less<>>

Index Eigen::SparseCompressedBase< Derived >::innerIndicesAreSorted ( ) const

inline

Returns

the index of the first inner vector in the range [0,outerSize) that is not sorted with respect to Comp, or outerSize if the range is fully sorted

See also

sortInnerIndices()

innerIndicesAreSorted() [2/2]

template<typename Derived >

template<class Comp = std::less<>>

Index Eigen::SparseCompressedBase< Derived >::innerIndicesAreSorted ( Index begin, Index end ) const

inline

Returns

the index of the first inner vector in the range [begin,end) that is not sorted with respect to Comp, or end if the range is fully sorted

See also

sortInnerIndices()

innerNonZeroPtr() [1/2]

template<typename Derived >

StorageIndex * Eigen::SparseCompressedBase< Derived >::innerNonZeroPtr ( )

inline

Returns

a non-const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 in compressed mode

innerNonZeroPtr() [2/2]

template<typename Derived >

const StorageIndex * Eigen::SparseCompressedBase< Derived >::innerNonZeroPtr ( ) const

inline

Returns

a const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 in compressed mode

isCompressed()

template<typename Derived >

bool Eigen::SparseCompressedBase< Derived >::isCompressed ( ) const

inline

Returns

whether *this is in compressed form.

nonZeros()

template<typename Derived >

Index Eigen::SparseCompressedBase< Derived >::nonZeros ( ) const

inline

Returns

the number of non zero coefficients

outerIndexPtr() [1/2]

template<typename Derived >

StorageIndex * Eigen::SparseCompressedBase< Derived >::outerIndexPtr ( )

inline

Returns

a non-const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 for SparseVector

See also

valuePtr(), innerIndexPtr()

outerIndexPtr() [2/2]

template<typename Derived >

const StorageIndex * Eigen::SparseCompressedBase< Derived >::outerIndexPtr ( ) const

inline

Returns

a const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 for SparseVector

See also

valuePtr(), innerIndexPtr()

sortInnerIndices() [1/2]

template<typename Derived >

template<class Comp = std::less<>>

void Eigen::SparseCompressedBase< Derived >::sortInnerIndices ( )

inline

sorts the inner vectors in the range [0,outerSize) with respect to Comp

See also

innerIndicesAreSorted()

sortInnerIndices() [2/2]

template<typename Derived >

template<class Comp = std::less<>>

void Eigen::SparseCompressedBase< Derived >::sortInnerIndices ( Index begin, Index end )

inline

sorts the inner vectors in the range [begin,end) with respect to Comp

See also

innerIndicesAreSorted()

valuePtr() [1/2]

template<typename Derived >

Scalar * Eigen::SparseCompressedBase< Derived >::valuePtr ( )

inline

Returns

a non-const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also

innerIndexPtr(), outerIndexPtr()

valuePtr() [2/2]

template<typename Derived >

const Scalar * Eigen::SparseCompressedBase< Derived >::valuePtr ( ) const

inline

Returns

a const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also

innerIndexPtr(), outerIndexPtr()

---

The documentation for this class was generated from the following file:

• SparseCompressedBase.h
