Eigen::SkewSymmetricWrapper< SkewSymmetricVectorType_ > Class Template Reference
Dense matrix and array manipulation » Reference » Core module

Detailed Description

template<typename SkewSymmetricVectorType_>
class Eigen::SkewSymmetricWrapper< SkewSymmetricVectorType_ >

Expression of a skew symmetric matrix.

Template Parameters
SkewSymmetricVectorType_the type of the vector of coefficients

This class is an expression of a skew symmetric matrix, but not storing its own vector of coefficients, instead wrapping an existing vector expression. It is the return type of MatrixBase::asSkewSymmetric() and most of the time this is the only way that it is used.

See also
class SkewSymmetricMatrix3, class SkewSymmetricBase, MatrixBase::asSkewSymmetric()

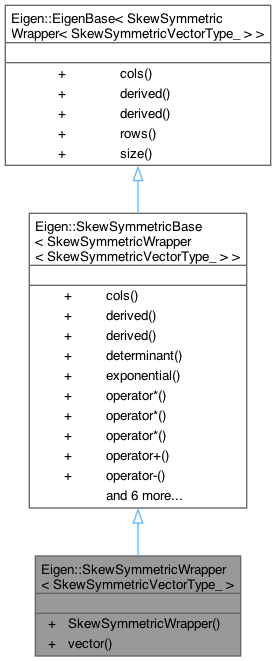

+ Inheritance diagram for Eigen::SkewSymmetricWrapper< SkewSymmetricVectorType_ >:

Public Member Functions

 SkewSymmetricWrapper (SkewSymmetricVectorType &a_vector)

const SkewSymmetricVectorType & vector () const

- Public Member Functions inherited from Eigen::SkewSymmetricBase< SkewSymmetricWrapper< SkewSymmetricVectorType_ > >
EIGEN_CONSTEXPR Index cols () const

SkewSymmetricWrapper< SkewSymmetricVectorType_ > & derived ()

const SkewSymmetricWrapper< SkewSymmetricVectorType_ > & derived () const

EIGEN_CONSTEXPR Scalar determinant () const

DenseMatrixType exponential () const

Product< SkewSymmetricWrapper< SkewSymmetricVectorType_ >, MatrixDerived, LazyProduct > operator* (const MatrixBase< MatrixDerived > &matrix) const

SkewSymmetricScaleReturnType operator* (const Scalar &scalar) const

Product< SkewSymmetricWrapper< SkewSymmetricVectorType_ >, MatrixDerived, LazyProduct > operator* (const SkewSymmetricBase< MatrixDerived > &matrix) const

SkewSymmetricSumReturnType< OtherDerived > operator+ (const SkewSymmetricBase< OtherDerived > &other) const

SkewSymmetricDifferenceReturnType< OtherDerived > operator- (const SkewSymmetricBase< OtherDerived > &other) const

EIGEN_CONSTEXPR Index rows () const

DenseMatrixType toDenseMatrix () const

PlainObject transpose () const

SkewSymmetricVectorType & vector ()

const SkewSymmetricVectorType & vector () const

SkewSymmetricProductReturnType< OtherDerived > wedge (const SkewSymmetricBase< OtherDerived > &other) const

- Public Member Functions inherited from Eigen::EigenBase< SkewSymmetricWrapper< SkewSymmetricVectorType_ > >
EIGEN_CONSTEXPR Index cols () const EIGEN_NOEXCEPT

SkewSymmetricWrapper< SkewSymmetricVectorType_ > & derived ()

const SkewSymmetricWrapper< SkewSymmetricVectorType_ > & derived () const

EIGEN_CONSTEXPR Index rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index size () const EIGEN_NOEXCEPT


Additional Inherited Members

- Public Types inherited from Eigen::EigenBase< SkewSymmetricWrapper< SkewSymmetricVectorType_ > >
typedef Eigen::Index Index
 The interface type of indices.


Constructor & Destructor Documentation

◆ SkewSymmetricWrapper()

template<typename SkewSymmetricVectorType_ >
Eigen::SkewSymmetricWrapper< SkewSymmetricVectorType_ >::SkewSymmetricWrapper ( SkewSymmetricVectorType & a_vector)
inlineexplicit

Constructor from expression of coefficients to wrap.

Member Function Documentation

◆ vector()

template<typename SkewSymmetricVectorType_ >
const SkewSymmetricVectorType & Eigen::SkewSymmetricWrapper< SkewSymmetricVectorType_ >::vector ( ) const
inline
Returns
a const reference to the wrapped expression of coefficients.
The documentation for this class was generated from the following file:
