Eigen::PlainObjectBase< Derived > Class Template Reference

Detailed Description

template<typename Derived>
class Eigen::PlainObjectBase< Derived >

Dense storage base class for matrices and arrays.

This class can be extended with the help of the plugin mechanism described on the page Extending MatrixBase (and other classes) by defining the preprocessor symbol EIGEN_PLAINOBJECTBASE_PLUGIN.

Template Parameters
Derivedis the derived type, e.g., a Matrix or Array
See also
The class hierarchy

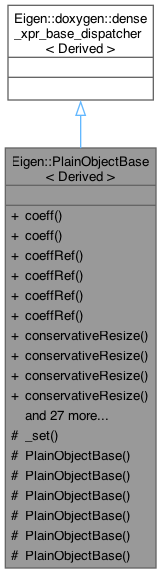

+ Inheritance diagram for Eigen::PlainObjectBase< Derived >:

Public Member Functions

constexpr const Scalar & coeff (Index index) const

constexpr const Scalar & coeff (Index rowId, Index colId) const

constexpr Scalar & coeffRef (Index index)

constexpr const Scalar & coeffRef (Index index) const

constexpr Scalar & coeffRef (Index rowId, Index colId)

constexpr const Scalar & coeffRef (Index rowId, Index colId) const

void conservativeResize (Index rows, Index cols)

void conservativeResize (Index rows, NoChange_t)

void conservativeResize (Index size)

void conservativeResize (NoChange_t, Index cols)

template<typename OtherDerived >
void conservativeResizeLike (const DenseBase< OtherDerived > &other)

Scalar * data ()

const Scalar * data () const

template<typename OtherDerived >
Derived & lazyAssign (const DenseBase< OtherDerived > &other)

template<typename OtherDerived >
Derived & operator= (const EigenBase< OtherDerived > &other)
 Copies the generic expression other into *this.

constexpr Derived & operator= (const PlainObjectBase &other)

constexpr void resize (Index rows, Index cols)

constexpr void resize (Index rows, NoChange_t)

constexpr void resize (Index size)

constexpr void resize (NoChange_t, Index cols)

template<typename OtherDerived >
void resizeLike (const EigenBase< OtherDerived > &_other)

Derived & setConstant (Index rows, Index cols, const Scalar &val)

Derived & setConstant (Index rows, NoChange_t, const Scalar &val)

Derived & setConstant (Index size, const Scalar &val)

Derived & setConstant (NoChange_t, Index cols, const Scalar &val)

Derived & setOnes (Index rows, Index cols)

Derived & setOnes (Index rows, NoChange_t)

Derived & setOnes (Index size)

Derived & setOnes (NoChange_t, Index cols)

Derived & setRandom (Index rows, Index cols)

Derived & setRandom (Index rows, NoChange_t)

Derived & setRandom (Index size)

Derived & setRandom (NoChange_t, Index cols)

Derived & setZero (Index rows, Index cols)

Derived & setZero (Index rows, NoChange_t)

Derived & setZero (Index size)

Derived & setZero (NoChange_t, Index cols)


Protected Member Functions

template<typename OtherDerived >
constexpr Derived & _set (const DenseBase< OtherDerived > &other)
 Copies the value of the expression other into *this with automatic resizing.

template<typename OtherDerived >
 PlainObjectBase (const DenseBase< OtherDerived > &other)

template<typename OtherDerived >
 PlainObjectBase (const EigenBase< OtherDerived > &other)

constexpr PlainObjectBase (const PlainObjectBase &other)

template<typename OtherDerived >
 PlainObjectBase (const ReturnByValue< OtherDerived > &other)
 Copy constructor with in-place evaluation.

template<typename... ArgTypes>
 PlainObjectBase (const Scalar &a0, const Scalar &a1, const Scalar &a2, const Scalar &a3, const ArgTypes &... args)
 Construct a row of column vector with fixed size from an arbitrary number of coefficients.

constexpr PlainObjectBase (const std::initializer_list< std::initializer_list< Scalar > > &list)
 Constructs a Matrix or Array and initializes it by elements given by an initializer list of initializer lists.


Constructor & Destructor Documentation

◆ PlainObjectBase() [1/4]

template<typename Derived >
Eigen::PlainObjectBase< Derived >::PlainObjectBase ( const PlainObjectBase< Derived > & other)
inlineconstexprprotected

Copy constructor

◆ PlainObjectBase() [2/4]

template<typename Derived >
template<typename... ArgTypes>
Eigen::PlainObjectBase< Derived >::PlainObjectBase ( const Scalar & a0,
const Scalar & a1,
const Scalar & a2,
const Scalar & a3,
const ArgTypes &... args )
inlineprotected

Construct a row of column vector with fixed size from an arbitrary number of coefficients.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

This constructor is for 1D array or vectors with more than 4 coefficients.

Warning
To construct a column (resp. row) vector of fixed length, the number of values passed to this constructor must match the the fixed number of rows (resp. columns) of *this.

◆ PlainObjectBase() [3/4]

template<typename Derived >
template<typename OtherDerived >
Eigen::PlainObjectBase< Derived >::PlainObjectBase ( const DenseBase< OtherDerived > & other)
inlineprotected

◆ PlainObjectBase() [4/4]

template<typename Derived >
template<typename OtherDerived >
Eigen::PlainObjectBase< Derived >::PlainObjectBase ( const EigenBase< OtherDerived > & other)
inlineprotected

Member Function Documentation

◆ _set()

template<typename Derived >
template<typename OtherDerived >
Derived & Eigen::PlainObjectBase< Derived >::_set ( const DenseBase< OtherDerived > & other)
inlineconstexprprotected

Copies the value of the expression other into *this with automatic resizing.

*this might be resized to match the dimensions of other. If *this was a null matrix (not already initialized), it will be initialized.

Note that copying a row-vector into a vector (and conversely) is allowed. The resizing, if any, is then done in the appropriate way so that row-vectors remain row-vectors and vectors remain vectors.

See also
operator=(const MatrixBase<OtherDerived>&), _set_noalias()

◆ coeff() [1/2]

template<typename Derived >
const Scalar & Eigen::PlainObjectBase< Derived >::coeff ( Index index) const
inlineconstexpr

This is an overloaded version of DenseCoeffsBase<Derived,ReadOnlyAccessors>::coeff(Index) const provided to by-pass the creation of an evaluator of the expression, thus saving compilation efforts.

See DenseCoeffsBase<Derived,ReadOnlyAccessors>::coeff(Index) const for details.

◆ coeff() [2/2]

template<typename Derived >
const Scalar & Eigen::PlainObjectBase< Derived >::coeff ( Index rowId,
Index colId ) const
inlineconstexpr

This is an overloaded version of DenseCoeffsBase<Derived,ReadOnlyAccessors>::coeff(Index,Index) const provided to by-pass the creation of an evaluator of the expression, thus saving compilation efforts.

See DenseCoeffsBase<Derived,ReadOnlyAccessors>::coeff(Index) const for details.

◆ coeffRef() [1/4]

template<typename Derived >
Scalar & Eigen::PlainObjectBase< Derived >::coeffRef ( Index index)
inlineconstexpr

This is an overloaded version of DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index) const provided to by-pass the creation of an evaluator of the expression, thus saving compilation efforts.

See DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index) const for details.

◆ coeffRef() [2/4]

template<typename Derived >
const Scalar & Eigen::PlainObjectBase< Derived >::coeffRef ( Index index) const
inlineconstexpr

This is the const version of coeffRef(Index) which is thus synonym of coeff(Index). It is provided for convenience.

◆ coeffRef() [3/4]

template<typename Derived >
Scalar & Eigen::PlainObjectBase< Derived >::coeffRef ( Index rowId,
Index colId )
inlineconstexpr

This is an overloaded version of DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index,Index) const provided to by-pass the creation of an evaluator of the expression, thus saving compilation efforts.

See DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index,Index) const for details.

◆ coeffRef() [4/4]

template<typename Derived >
const Scalar & Eigen::PlainObjectBase< Derived >::coeffRef ( Index rowId,
Index colId ) const
inlineconstexpr

This is the const version of coeffRef(Index,Index) which is thus synonym of coeff(Index,Index). It is provided for convenience.

◆ conservativeResize() [1/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::conservativeResize ( Index rows,
Index cols )
inline

Resizes the matrix to rows x cols while leaving old values untouched.

The method is intended for matrices of dynamic size. If you only want to change the number of rows and/or of columns, you can use conservativeResize(NoChange_t, Index) or conservativeResize(Index, NoChange_t).

Matrices are resized relative to the top-left element. In case values need to be appended to the matrix they will be uninitialized.

◆ conservativeResize() [2/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::conservativeResize ( Index rows,
NoChange_t  )
inline

Resizes the matrix to rows x cols while leaving old values untouched.

As opposed to conservativeResize(Index rows, Index cols), this version leaves the number of columns unchanged.

In case the matrix is growing, new rows will be uninitialized.

◆ conservativeResize() [3/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::conservativeResize ( Index size)
inline

Resizes the vector to size while retaining old values.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column. . This method does not work for partially dynamic matrices when the static dimension is anything other than 1. For example it will not work with Matrix<double, 2, Dynamic>.

When values are appended, they will be uninitialized.

◆ conservativeResize() [4/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::conservativeResize ( NoChange_t ,
Index cols )
inline

Resizes the matrix to rows x cols while leaving old values untouched.

As opposed to conservativeResize(Index rows, Index cols), this version leaves the number of rows unchanged.

In case the matrix is growing, new columns will be uninitialized.

◆ conservativeResizeLike()

template<typename Derived >
template<typename OtherDerived >
void Eigen::PlainObjectBase< Derived >::conservativeResizeLike ( const DenseBase< OtherDerived > & other)
inline

Resizes the matrix to rows x cols of other, while leaving old values untouched.

The method is intended for matrices of dynamic size. If you only want to change the number of rows and/or of columns, you can use conservativeResize(NoChange_t, Index) or conservativeResize(Index, NoChange_t).

Matrices are resized relative to the top-left element. In case values need to be appended to the matrix they will copied from other.

◆ data() [1/2]

template<typename Derived >
Scalar * Eigen::PlainObjectBase< Derived >::data ( )
inline
Returns
a pointer to the data array of this matrix

◆ data() [2/2]

template<typename Derived >
const Scalar * Eigen::PlainObjectBase< Derived >::data ( ) const
inline
Returns
a const pointer to the data array of this matrix

◆ lazyAssign()

template<typename Derived >
template<typename OtherDerived >
Derived & Eigen::PlainObjectBase< Derived >::lazyAssign ( const DenseBase< OtherDerived > & other)
inline

◆ operator=() [1/2]

template<typename Derived >
template<typename OtherDerived >
Derived & Eigen::PlainObjectBase< Derived >::operator= ( const EigenBase< OtherDerived > & other)
inline

Copies the generic expression other into *this.

The expression must provide a (templated) evalTo(Derived& dst) const function which does the actual job. In practice, this allows any user to write its own special matrix without having to modify MatrixBase

Returns
a reference to *this.

◆ operator=() [2/2]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::operator= ( const PlainObjectBase< Derived > & other)
inlineconstexpr

This is a special case of the templated operator=. Its purpose is to prevent a default operator= from hiding the templated operator=.

◆ resize() [1/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::resize ( Index rows,
Index cols )
inlineconstexpr

Resizes *this to a rows x cols matrix.

This method is intended for dynamic-size matrices, although it is legal to call it on any matrix as long as fixed dimensions are left unchanged. If you only want to change the number of rows and/or of columns, you can use resize(NoChange_t, Index), resize(Index, NoChange_t).

If the current number of coefficients of *this exactly matches the product rows * cols, then no memory allocation is performed and the current values are left unchanged. In all other cases, including shrinking, the data is reallocated and all previous values are lost.

Example:

MatrixXd m(2, 3);
m << 1, 2, 3, 4, 5, 6;
cout << "here's the 2x3 matrix m:" << endl << m << endl;
cout << "let's resize m to 3x2. This is a conservative resizing because 2*3==3*2." << endl;
m.resize(3, 2);
cout << "here's the 3x2 matrix m:" << endl << m << endl;
cout << "now let's resize m to size 2x2. This is NOT a conservative resizing, so it becomes uninitialized:" << endl;
m.resize(2, 2);
cout << m << endl;
The matrix class, also used for vectors and row-vectors.
Definition Matrix.h:186

Output:

See also
resize(Index) for vectors, resize(NoChange_t, Index), resize(Index, NoChange_t)

◆ resize() [2/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::resize ( Index rows,
NoChange_t  )
inlineconstexpr

Resizes the matrix, changing only the number of rows. For the parameter of type NoChange_t, just pass the special value NoChange as in the example below.

Example:

MatrixXd m(3, 4);
m.resize(5, NoChange);
cout << "m: " << m.rows() << " rows, " << m.cols() << " cols" << endl;

Output:

See also
resize(Index,Index)

◆ resize() [3/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::resize ( Index size)
inlineconstexpr

Resizes *this to a vector of length size

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column. . This method does not work for partially dynamic matrices when the static dimension is anything other than 1. For example it will not work with Matrix<double, 2, Dynamic>.

Example:

VectorXd v(10);
v.resize(3);
w.resize(3); // this is legal, but has no effect
cout << "v: " << v.rows() << " rows, " << v.cols() << " cols" << endl;
cout << "w: " << w.rows() << " rows, " << w.cols() << " cols" << endl;
constexpr void resize(Index rows, Index cols)
Definition PlainObjectBase.h:294

Output:

See also
resize(Index,Index), resize(NoChange_t, Index), resize(Index, NoChange_t)

◆ resize() [4/4]

template<typename Derived >
void Eigen::PlainObjectBase< Derived >::resize ( NoChange_t ,
Index cols )
inlineconstexpr

Resizes the matrix, changing only the number of columns. For the parameter of type NoChange_t, just pass the special value NoChange as in the example below.

Example:

MatrixXd m(3, 4);
m.resize(NoChange, 5);
cout << "m: " << m.rows() << " rows, " << m.cols() << " cols" << endl;

Output:

See also
resize(Index,Index)

◆ resizeLike()

template<typename Derived >
template<typename OtherDerived >
void Eigen::PlainObjectBase< Derived >::resizeLike ( const EigenBase< OtherDerived > & _other)
inline

Resizes *this to have the same dimensions as other. Takes care of doing all the checking that's needed.

Note that copying a row-vector into a vector (and conversely) is allowed. The resizing, if any, is then done in the appropriate way so that row-vectors remain row-vectors and vectors remain vectors.

◆ setConstant() [1/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setConstant ( Index rows,
Index cols,
const Scalar & val )
inline

Resizes to the given size, and sets all coefficients in this expression to the given value val.

Parameters
rowsthe new number of rows
colsthe new number of columns
valthe value to which all coefficients are set

Example:

m.setConstant(3, 3, 5);
cout << m << endl;
Derived & setConstant(Index size, const Scalar &val)
Definition CwiseNullaryOp.h:360

Output:

See also
MatrixBase::setConstant(const Scalar&), setConstant(Index,const Scalar&), class CwiseNullaryOp, MatrixBase::Constant(const Scalar&)

◆ setConstant() [2/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setConstant ( Index rows,
NoChange_t ,
const Scalar & val )
inline

Resizes to the given size, changing only the number of rows, and sets all coefficients in this expression to the given value val. For the parameter of type NoChange_t, just pass the special value NoChange.

See also
MatrixBase::setConstant(const Scalar&), setConstant(Index,const Scalar&), class CwiseNullaryOp, MatrixBase::Constant(const Scalar&)

◆ setConstant() [3/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setConstant ( Index size,
const Scalar & val )
inline

Resizes to the given size, and sets all coefficients in this expression to the given value val.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Example:

v.setConstant(3, 5);
cout << v << endl;

Output:

See also
MatrixBase::setConstant(const Scalar&), setConstant(Index,Index,const Scalar&), class CwiseNullaryOp, MatrixBase::Constant(const Scalar&)

◆ setConstant() [4/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setConstant ( NoChange_t ,
Index cols,
const Scalar & val )
inline

Resizes to the given size, changing only the number of columns, and sets all coefficients in this expression to the given value val. For the parameter of type NoChange_t, just pass the special value NoChange.

See also
MatrixBase::setConstant(const Scalar&), setConstant(Index,const Scalar&), class CwiseNullaryOp, MatrixBase::Constant(const Scalar&)

◆ setOnes() [1/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setOnes ( Index rows,
Index cols )
inline

Resizes to the given size, and sets all coefficients in this expression to one.

Parameters
rowsthe new number of rows
colsthe new number of columns

Example:

m.setOnes(3, 3);
cout << m << endl;
Derived & setOnes(Index size)
Definition CwiseNullaryOp.h:702

Output:

See also
MatrixBase::setOnes(), setOnes(Index), class CwiseNullaryOp, MatrixBase::Ones()

◆ setOnes() [2/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setOnes ( Index rows,
NoChange_t  )
inline

Resizes to the given size, changing only the number of rows, and sets all coefficients in this expression to one. For the parameter of type NoChange_t, just pass the special value NoChange.

See also
MatrixBase::setOnes(), setOnes(Index), setOnes(Index, Index), setOnes(NoChange_t, Index), class CwiseNullaryOp, MatrixBase::Ones()

◆ setOnes() [3/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setOnes ( Index newSize)
inline

Resizes to the given newSize, and sets all coefficients in this expression to one.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Example:

v.setOnes(3);
cout << v << endl;

Output:

See also
MatrixBase::setOnes(), setOnes(Index,Index), class CwiseNullaryOp, MatrixBase::Ones()

◆ setOnes() [4/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setOnes ( NoChange_t ,
Index cols )
inline

Resizes to the given size, changing only the number of columns, and sets all coefficients in this expression to one. For the parameter of type NoChange_t, just pass the special value NoChange.

See also
MatrixBase::setOnes(), setOnes(Index), setOnes(Index, Index), setOnes(Index, NoChange_t) class CwiseNullaryOp, MatrixBase::Ones()

◆ setRandom() [1/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setRandom ( Index rows,
Index cols )
inline

Resizes to the given size, and sets all coefficients in this expression to random values.

Numbers are uniformly spread through their whole definition range for integer types, and in the [-1:1] range for floating point scalar types.

Warning
This function is not re-entrant.
Parameters
rowsthe new number of rows
colsthe new number of columns

Example:

m.setRandom(3, 3);
cout << m << endl;
Derived & setRandom(Index size)
Definition Random.h:147

Output:

See also
DenseBase::setRandom(), setRandom(Index), class CwiseNullaryOp, DenseBase::Random()

◆ setRandom() [2/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setRandom ( Index rows,
NoChange_t  )
inline

Resizes to the given size, changing only the number of rows, and sets all coefficients in this expression to random values. For the parameter of type NoChange_t, just pass the special value NoChange.

Numbers are uniformly spread through their whole definition range for integer types, and in the [-1:1] range for floating point scalar types.

Warning
This function is not re-entrant.
See also
DenseBase::setRandom(), setRandom(Index), setRandom(NoChange_t, Index), class CwiseNullaryOp, DenseBase::Random()

◆ setRandom() [3/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setRandom ( Index newSize)
inline

Resizes to the given newSize, and sets all coefficients in this expression to random values.

Numbers are uniformly spread through their whole definition range for integer types, and in the [-1:1] range for floating point scalar types.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Warning
This function is not re-entrant.

Example:

v.setRandom(3);
cout << v << endl;

Output:

See also
DenseBase::setRandom(), setRandom(Index,Index), class CwiseNullaryOp, DenseBase::Random()

◆ setRandom() [4/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setRandom ( NoChange_t ,
Index cols )
inline

Resizes to the given size, changing only the number of columns, and sets all coefficients in this expression to random values. For the parameter of type NoChange_t, just pass the special value NoChange.

Numbers are uniformly spread through their whole definition range for integer types, and in the [-1:1] range for floating point scalar types.

Warning
This function is not re-entrant.
See also
DenseBase::setRandom(), setRandom(Index), setRandom(Index, NoChange_t), class CwiseNullaryOp, DenseBase::Random()

◆ setZero() [1/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setZero ( Index rows,
Index cols )
inline

Resizes to the given size, and sets all coefficients in this expression to zero.

Parameters
rowsthe new number of rows
colsthe new number of columns

Example:

m.setZero(3, 3);
cout << m << endl;
Derived & setZero(Index size)
Definition CwiseNullaryOp.h:563

Output:

See also
DenseBase::setZero(), setZero(Index), class CwiseNullaryOp, DenseBase::Zero()

◆ setZero() [2/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setZero ( Index rows,
NoChange_t  )
inline

Resizes to the given size, changing only the number of rows, and sets all coefficients in this expression to zero. For the parameter of type NoChange_t, just pass the special value NoChange.

See also
DenseBase::setZero(), setZero(Index), setZero(Index, Index), setZero(NoChange_t, Index), class CwiseNullaryOp, DenseBase::Zero()

◆ setZero() [3/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setZero ( Index newSize)
inline

Resizes to the given size, and sets all coefficients in this expression to zero.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Example:

v.setZero(3);
cout << v << endl;

Output:

See also
DenseBase::setZero(), setZero(Index,Index), class CwiseNullaryOp, DenseBase::Zero()

◆ setZero() [4/4]

template<typename Derived >
Derived & Eigen::PlainObjectBase< Derived >::setZero ( NoChange_t ,
Index cols )
inline

Resizes to the given size, changing only the number of columns, and sets all coefficients in this expression to zero. For the parameter of type NoChange_t, just pass the special value NoChange.

See also
DenseBase::setZero(), setZero(Index), setZero(Index, Index), setZero(Index, NoChange_t), class CwiseNullaryOp, DenseBase::Zero()

The documentation for this class was generated from the following files:
