Detailed Description

template<typename Derived>
class Eigen::DenseCoeffsBase< Derived, WriteAccessors >

Base class providing read/write coefficient access to matrices and arrays.

Template Parameters

Derived Type of the derived class

Note: WriteAccessors Constant indicating read/write access

This class defines the non-const operator() function and friends, which can be used to write specific entries of a matrix or array. This class inherits DenseCoeffsBase<Derived, ReadOnlyAccessors> which defines the const variant for reading specific entries.

See also: DenseCoeffsBase<Derived, DirectAccessors>, The class hierarchy

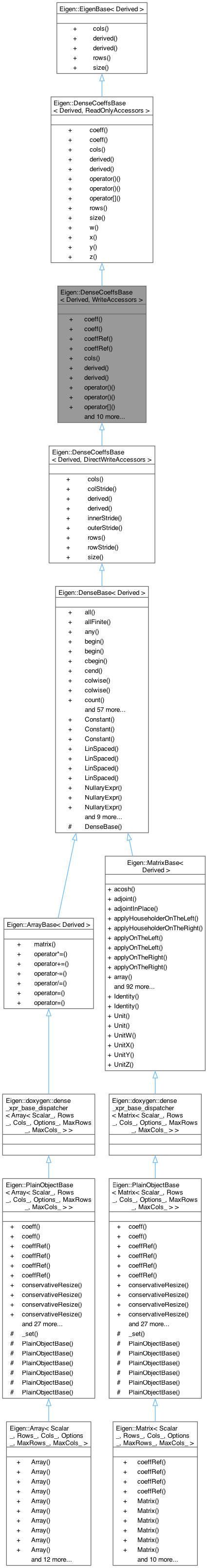

Inheritance diagram for Eigen::DenseCoeffsBase< Derived, WriteAccessors >:

Public Member Functions
EIGEN_CONSTEXPR CoeffReturnType	coeff (Index index) const

EIGEN_CONSTEXPR CoeffReturnType	coeff (Index row, Index col) const

Scalar &	coeffRef (Index index)

Scalar &	coeffRef (Index row, Index col)

EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

Derived &	derived ()

const Derived &	derived () const

EIGEN_CONSTEXPR Scalar &	operator() (Index index)

Scalar &	operator() (Index row, Index col)

Scalar &	operator[] (Index index)

EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Scalar &	w ()

EIGEN_CONSTEXPR CoeffReturnType	w () const

EIGEN_CONSTEXPR Scalar &	x ()

EIGEN_CONSTEXPR CoeffReturnType	x () const

EIGEN_CONSTEXPR Scalar &	y ()

EIGEN_CONSTEXPR CoeffReturnType	y () const

EIGEN_CONSTEXPR Scalar &	z ()

EIGEN_CONSTEXPR CoeffReturnType	z () const

Public Member Functions inherited from Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >
EIGEN_CONSTEXPR CoeffReturnType	coeff (Index index) const

EIGEN_CONSTEXPR CoeffReturnType	coeff (Index row, Index col) const

EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

Derived &	derived ()

const Derived &	derived () const

EIGEN_CONSTEXPR CoeffReturnType	operator() (Index index) const

EIGEN_CONSTEXPR CoeffReturnType	operator() (Index row, Index col) const

EIGEN_CONSTEXPR CoeffReturnType	operator[] (Index index) const

EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR CoeffReturnType	w () const

EIGEN_CONSTEXPR CoeffReturnType	x () const

EIGEN_CONSTEXPR CoeffReturnType	y () const

EIGEN_CONSTEXPR CoeffReturnType	z () const

Public Member Functions inherited from Eigen::EigenBase< Derived >
EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

Derived &	derived ()

const Derived &	derived () const

EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

Additional Inherited Members
Public Types inherited from Eigen::EigenBase< Derived >
typedef Eigen::Index	Index
	The interface type of indices.

Member Function Documentation

◆ coeff() [1/2]

template<typename Derived >

EIGEN_CONSTEXPR CoeffReturnType Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >::coeff ( Index index ) const

inline

Short version: don't use this function, use operator[](Index) const instead.

Long version: this function is similar to operator[](Index) const , but without the assertion. Use this for limiting the performance cost of debugging code when doing repeated coefficient access. Only use this when it is guaranteed that the parameter index is in range.

If EIGEN_INTERNAL_DEBUGGING is defined, an assertion will be made, making this function equivalent to operator[](Index) const .

See also: operator[](Index) const, coeffRef(Index), coeff(Index,Index) const

◆ coeff() [2/2]

template<typename Derived >

EIGEN_CONSTEXPR CoeffReturnType Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >::coeff	(	Index	row,
		Index	col ) const

inline

Short version: don't use this function, use operator()(Index,Index) const instead.

Long version: this function is similar to operator()(Index,Index) const , but without the assertion. Use this for limiting the performance cost of debugging code when doing repeated coefficient access. Only use this when it is guaranteed that the parameters row and col are in range.

If EIGEN_INTERNAL_DEBUGGING is defined, an assertion will be made, making this function equivalent to operator()(Index,Index) const .

See also: operator()(Index,Index) const, coeffRef(Index,Index), coeff(Index) const

◆ coeffRef() [1/2]

template<typename Derived >

Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::coeffRef ( Index index )

inline

Short version: don't use this function, use operator[](Index) instead.

Long version: this function is similar to operator[](Index), but without the assertion. Use this for limiting the performance cost of debugging code when doing repeated coefficient access. Only use this when it is guaranteed that the parameters row and col are in range.

If EIGEN_INTERNAL_DEBUGGING is defined, an assertion will be made, making this function equivalent to operator[](Index).

See also: operator[](Index), coeff(Index) const, coeffRef(Index,Index)

◆ coeffRef() [2/2]

template<typename Derived >

Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::coeffRef	(	Index	row,
		Index	col )

inline

Short version: don't use this function, use operator()(Index,Index) instead.

Long version: this function is similar to operator()(Index,Index), but without the assertion. Use this for limiting the performance cost of debugging code when doing repeated coefficient access. Only use this when it is guaranteed that the parameters row and col are in range.

If EIGEN_INTERNAL_DEBUGGING is defined, an assertion will be made, making this function equivalent to operator()(Index,Index).

See also: operator()(Index,Index), coeff(Index, Index) const, coeffRef(Index)

◆ cols()

template<typename Derived >

EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::cols ( ) const

inline

Returns: the number of columns.

See also: rows(), ColsAtCompileTime

◆ derived() [1/2]

template<typename Derived >

Derived & Eigen::EigenBase< Derived >::derived ( )

inline

Returns: a reference to the derived object

◆ derived() [2/2]

template<typename Derived >

const Derived & Eigen::EigenBase< Derived >::derived ( ) const

inline

Returns: a const reference to the derived object

◆ operator()() [1/2]

template<typename Derived >

EIGEN_CONSTEXPR Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::operator() ( Index index )

inline

Returns: a reference to the coefficient at given index.

This is synonymous to operator[](Index).

This method is allowed only for vector expressions, and for matrix expressions having the LinearAccessBit.

See also: operator[](Index) const, operator()(Index,Index), x(), y(), z(), w()

◆ operator()() [2/2]

template<typename Derived >

Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::operator()	(	Index	row,
		Index	col )

inline

Returns: a reference to the coefficient at given the given row and column.

See also: operator[](Index)

◆ operator[]()

template<typename Derived >

Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::operator[] ( Index index )

inline

Returns: a reference to the coefficient at given index.

This method is allowed only for vector expressions, and for matrix expressions having the LinearAccessBit.

See also: operator[](Index) const, operator()(Index,Index), x(), y(), z(), w()

◆ rows()

template<typename Derived >

EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::rows ( ) const

inline

Returns: the number of rows.

See also: cols(), RowsAtCompileTime

◆ size()

template<typename Derived >

EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::size ( ) const

inline

Returns: the number of coefficients, which is rows()*cols().

See also: rows(), cols(), SizeAtCompileTime.

◆ w() [1/2]

template<typename Derived >

EIGEN_CONSTEXPR Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::w ( )

inline

equivalent to operator[](3).

◆ w() [2/2]

template<typename Derived >

EIGEN_CONSTEXPR CoeffReturnType Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >::w ( ) const

inline

equivalent to operator[](3).

◆ x() [1/2]

template<typename Derived >

EIGEN_CONSTEXPR Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::x ( )

inline

equivalent to operator[](0).

◆ x() [2/2]

template<typename Derived >

EIGEN_CONSTEXPR CoeffReturnType Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >::x ( ) const

inline

equivalent to operator[](0).

◆ y() [1/2]

template<typename Derived >

EIGEN_CONSTEXPR Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::y ( )

inline

equivalent to operator[](1).

◆ y() [2/2]

template<typename Derived >

EIGEN_CONSTEXPR CoeffReturnType Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >::y ( ) const

inline

equivalent to operator[](1).

◆ z() [1/2]

template<typename Derived >

EIGEN_CONSTEXPR Scalar & Eigen::DenseCoeffsBase< Derived, WriteAccessors >::z ( )

inline

equivalent to operator[](2).

◆ z() [2/2]

template<typename Derived >

EIGEN_CONSTEXPR CoeffReturnType Eigen::DenseCoeffsBase< Derived, ReadOnlyAccessors >::z ( ) const

inline

equivalent to operator[](2).

The documentation for this class was generated from the following file:

DenseCoeffsBase.h
