Eigen::CholmodSimplicialLLT< MatrixType_, UpLo_ > Class Template Reference

Detailed Description

template<typename MatrixType_, int UpLo_ = Lower>
class Eigen::CholmodSimplicialLLT< MatrixType_, UpLo_ >

A simplicial direct Cholesky (LLT) factorization and solver based on Cholmod.

This class allows to solve for A.X = B sparse linear problems via a simplicial LL^T Cholesky factorization using the Cholmod library. This simplicial variant is equivalent to Eigen's built-in SimplicialLLT class. Therefore, it has little practical interest. The sparse matrix A must be selfadjoint and positive definite. The vectors or matrices X and B can be either dense or sparse.

Template Parameters

MatrixType_	the type of the sparse matrix A, it must be a SparseMatrix<>
UpLo_	the triangular part that will be used for the computations. It can be Lower or Upper. Default is Lower.

This class follows the sparse solver concept .

This class supports all kind of SparseMatrix<>: row or column major; upper, lower, or both; compressed or non compressed.

Warning

Only double precision real and complex scalar types are supported by Cholmod.

See also

Sparse solver concept, class CholmodSupernodalLLT, class SimplicialLLT

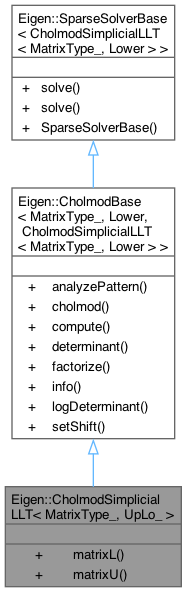

Inheritance diagram for Eigen::CholmodSimplicialLLT< MatrixType_, UpLo_ >:

Public Member Functions
MatrixL	matrixL () const
MatrixU	matrixU () const
Public Member Functions inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodSimplicialLLT< MatrixType_, Lower > >
void	analyzePattern (const MatrixType &matrix)
cholmod_common &	cholmod ()
CholmodSimplicialLLT< MatrixType_, Lower > &	compute (const MatrixType &matrix)
Scalar	determinant () const
void	factorize (const MatrixType &matrix)
ComputationInfo	info () const
	Reports whether previous computation was successful.
Scalar	logDeterminant () const
CholmodSimplicialLLT< MatrixType_, Lower > &	setShift (const RealScalar &offset)
Public Member Functions inherited from Eigen::SparseSolverBase< CholmodSimplicialLLT< MatrixType_, Lower > >
const Solve< CholmodSimplicialLLT< MatrixType_, Lower >, Rhs >	solve (const MatrixBase< Rhs > &b) const
const Solve< CholmodSimplicialLLT< MatrixType_, Lower >, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const
	SparseSolverBase ()

Member Function Documentation

matrixL()

template<typename MatrixType_ , int UpLo_ = Lower>

MatrixL Eigen::CholmodSimplicialLLT< MatrixType_, UpLo_ >::matrixL ( ) const

inline

Returns

an expression of the factor L

matrixU()

template<typename MatrixType_ , int UpLo_ = Lower>

MatrixU Eigen::CholmodSimplicialLLT< MatrixType_, UpLo_ >::matrixU ( ) const

inline

Returns

an expression of the factor U (= L^*)

---

The documentation for this class was generated from the following file:

• CholmodSupport.h
